The large fitting range available and the dedicated assembly tooling for the QUADRA hose allows the operator to assemble the machine, or carry out maintenance and to work quickly, flexibly and securely.

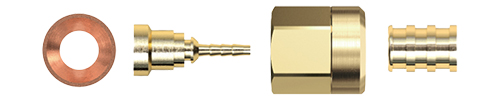

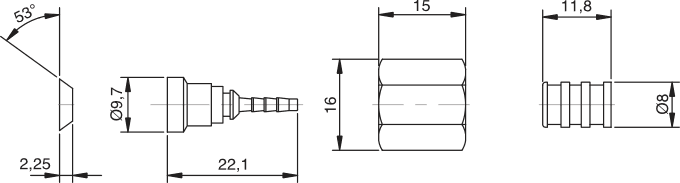

1/4 Straight female fitting – Conforms to UL requirements

Show size
Part no.	XBA02C	WBA02C	KBA02C
Pack	50 pieces box	50 pieces box	10 pieces blister
Copper gasket	Yes	No	No

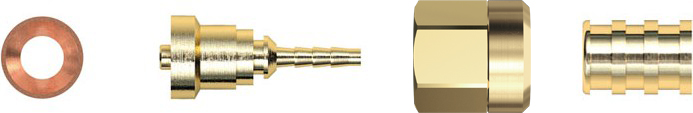

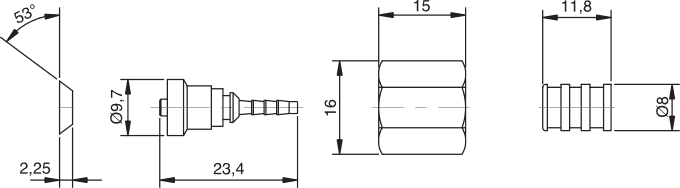

1/4 Straight female fitting + valve opener

Show size
Part no.	XBB02C	WBB02C	KBB02C
Pack	50 pieces box	50 pieces box	10 pieces blister
Copper gasket	Yes	No	No

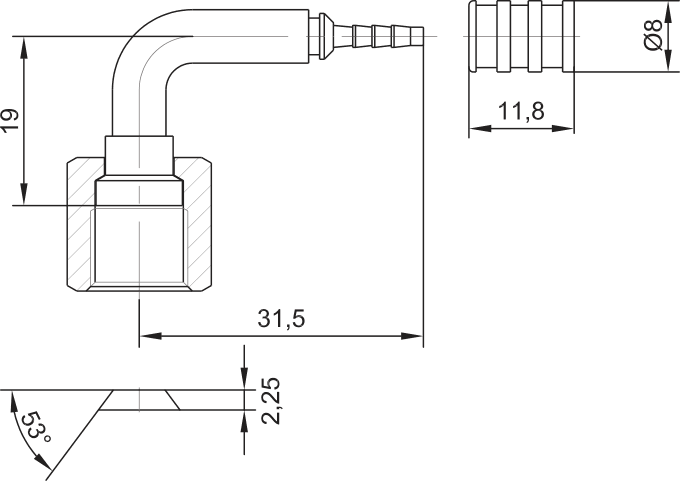

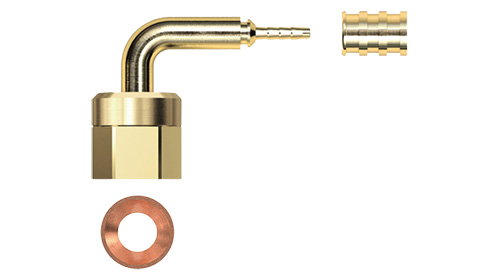

1/4 Female elbow 90° Fitting – Conforms to UL requirements

Show size
Part no.	XCA02C	WCA02C	KCA02C
Pack	50 pieces box	50 pieces box	10 pieces blister
Copper gasket	Yes	No	No

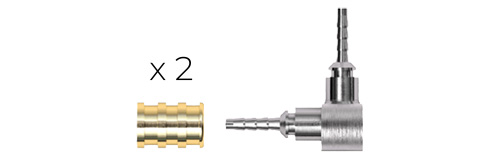

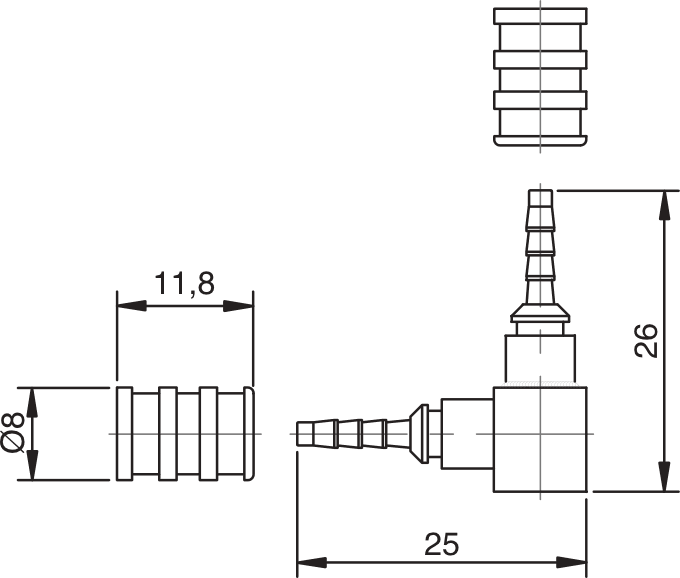

Elbow fitting 90°

Show size
Part no.	WPD2C1	KPD2C1
Pack	50 pieces box	10 pieces blister
Copper gasket	No	No

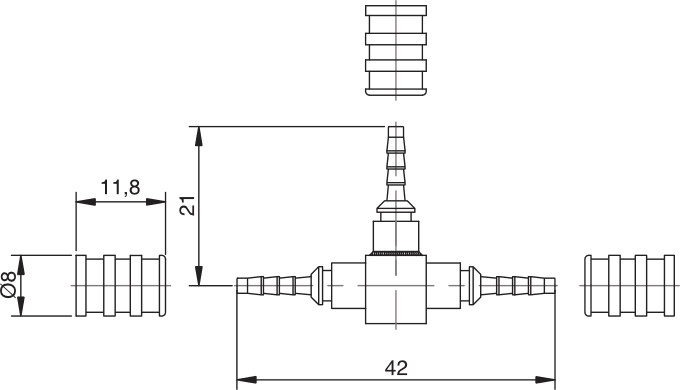

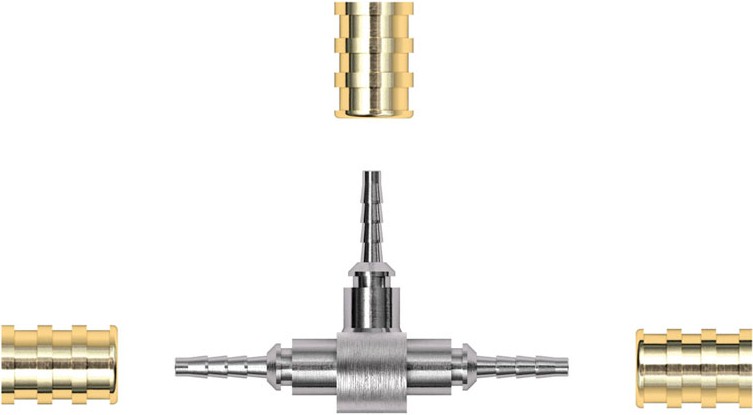

“T” Fitting

Show size
Part no.	WPB0C1	KPB0C1
Pack	50 pieces box	10 pieces blister
Copper gasket	No	No

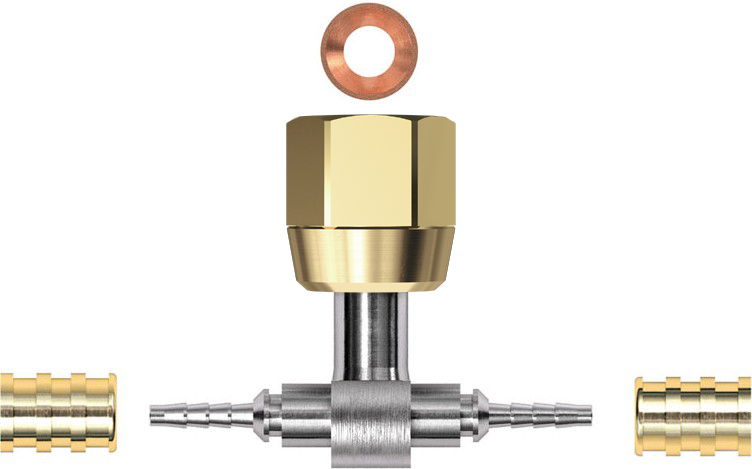

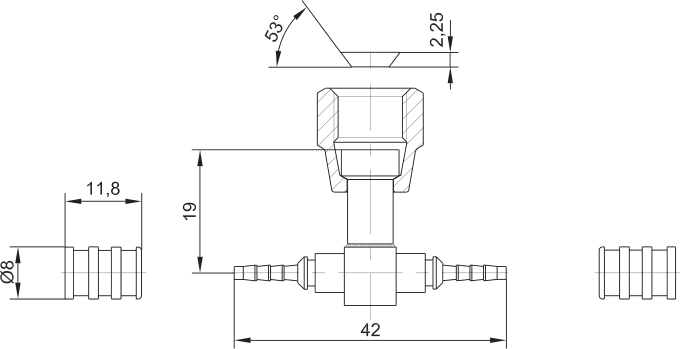

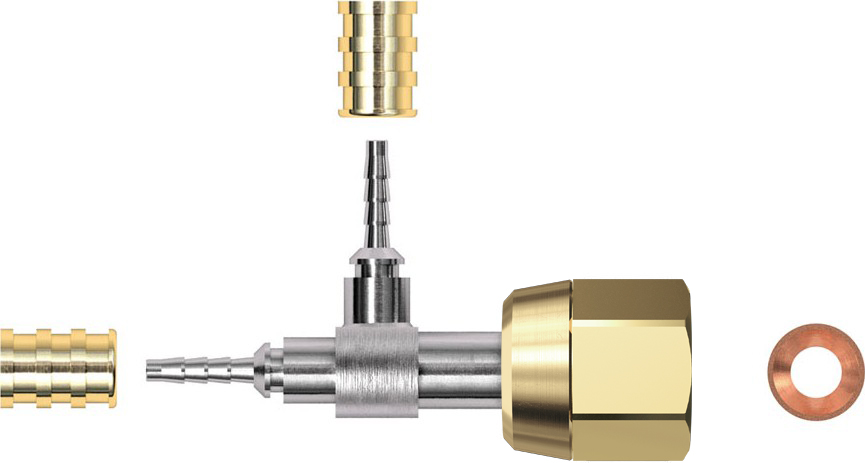

“T” Fitting with one female 1/4 SAE

Show size
Part no.	XPB0C2	WPB0C2	KPB0C2
Pack	50 pieces box	50 pieces box	10 pieces blister
Copper gasket	Yes	No	No



“T” Fitting with one female 1/4 SAE

Show size
Part no.	XPB2C4	WPB2C4	KPB2C4
Pack	50 pieces box	50 pieces box	10 pieces blister
Copper gasket	Yes	No	No

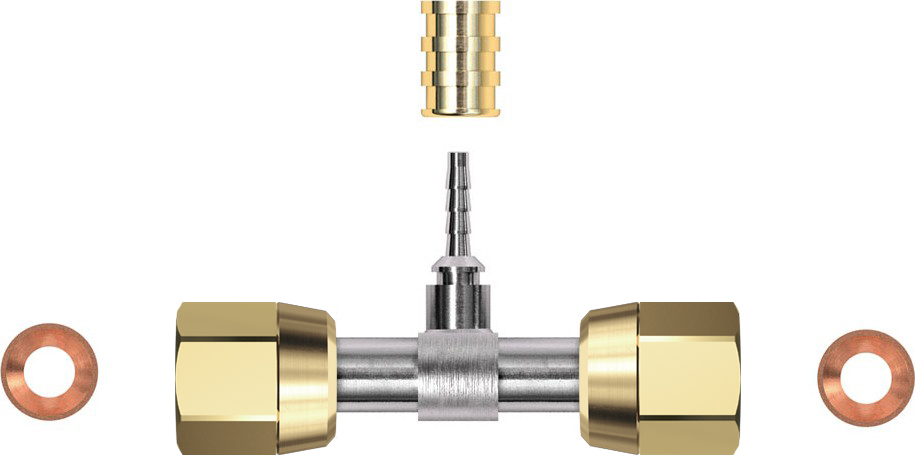

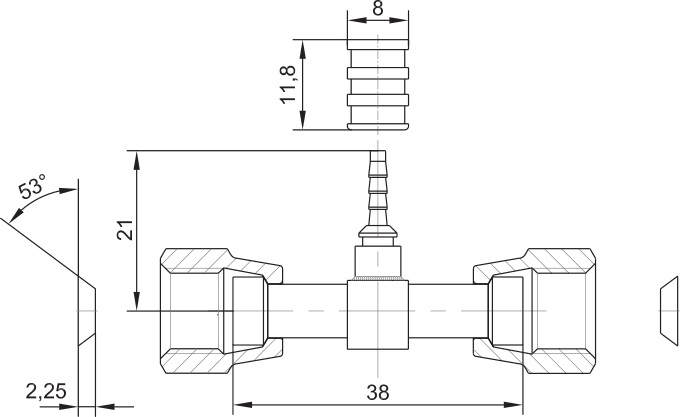

“T” Fitting with 2 female 1/4 SAE at 180°

Show size
Part no.	XPB2C3	WPB2C3	KPB2C3
Pack	50 pieces box	50 pieces box	10 pieces blister
Copper gasket	Yes	No	No

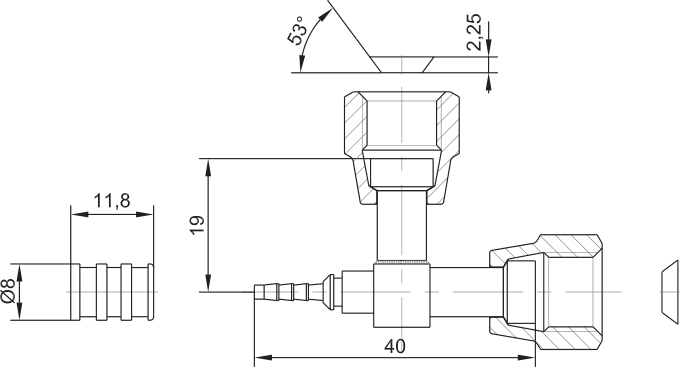

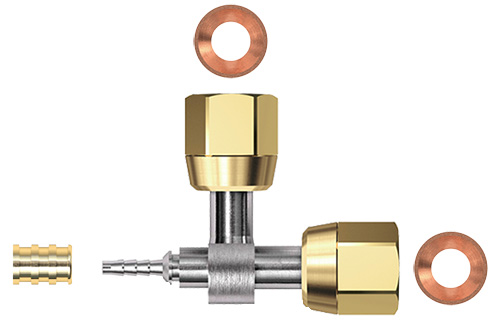

“T” Fitting with 2 female 1/4 SAE at 90°

Show size
Part no.	XPB2C7	WPB2C7	KPB2C7
Pack	50 pieces box	50 pieces box	10 pieces blister
Copper gasket	Yes	No	No

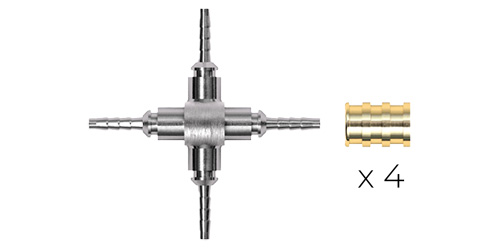

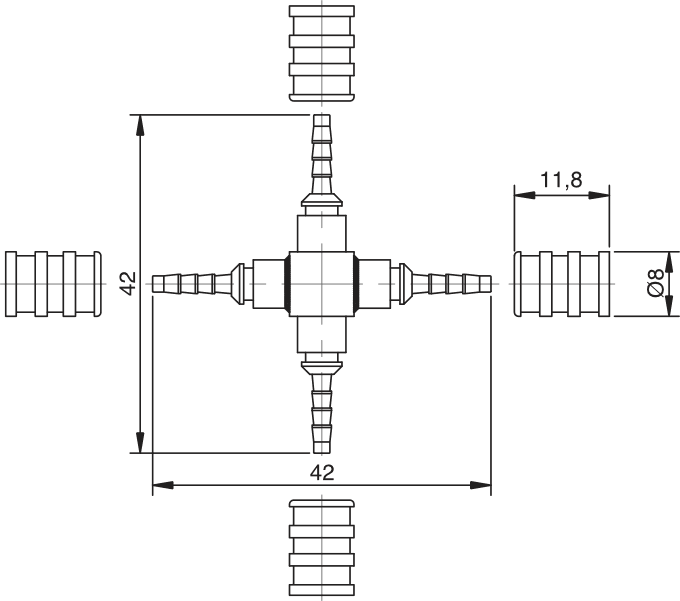

Cross fitting

Show size
Part no.	WPA2C1	KPA2C1
Pack	50 pieces box	10 pieces blister
Copper gasket	No	No

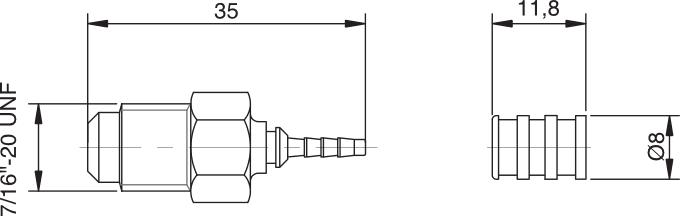

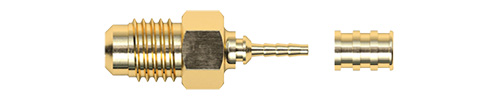

1/4 SAE Straight male

Show size
Part no.	WDN22C	KDN22C
Pack	50 pieces box	10 pieces blister
Copper gasket	No	No

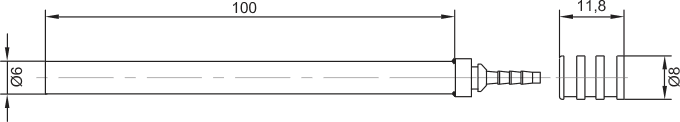

Copper Brazing Fitting (4 x 6 x 100 mm)

Show size
Part no.	WZE2C1
Pack	50 pieces box



The assembly tooling for the QUADRA hose allows the operator to assemble the machine, or carry out maintenance and to work quickly, flexibly and securely, reducing to a minimum the need of brazing operations.

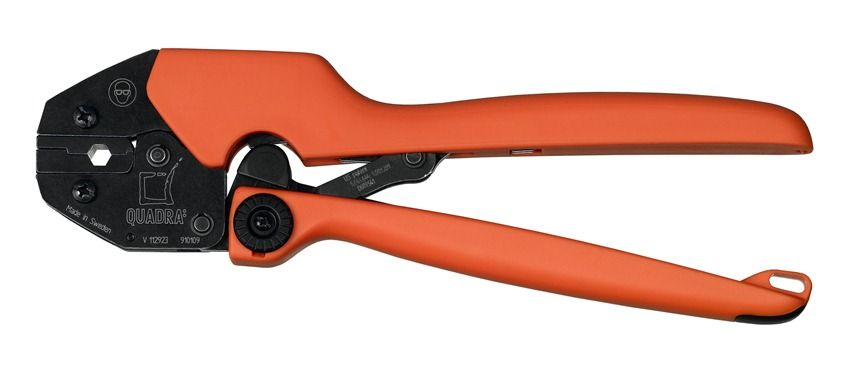

Hand Pliers

Part no.	RXA007
Pack	1 pcs

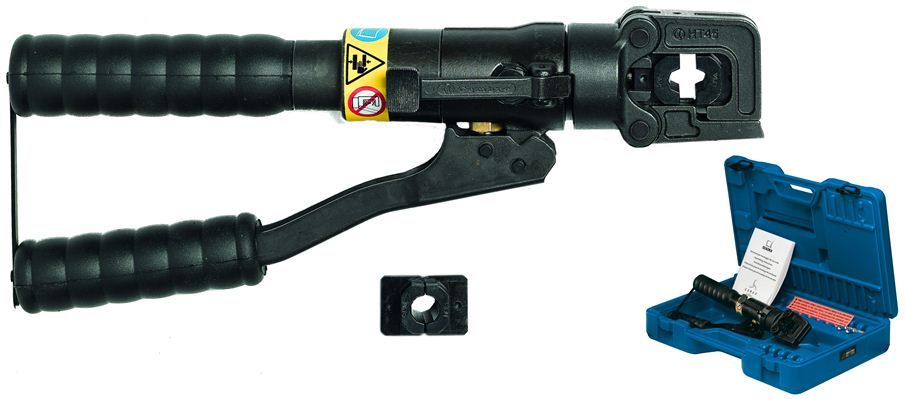

Hydraulic Pliers

Part no.	RXA005
Pack	1 pcs

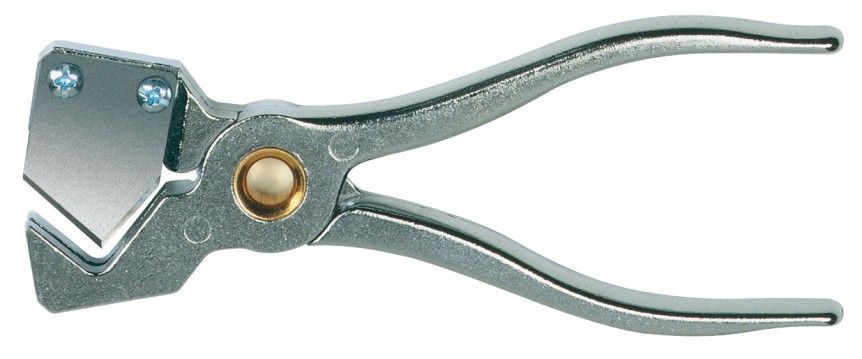

Cutter and Blades

Cutter
Part no.	WXA004
Pack	1 pcs

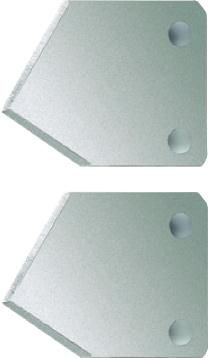

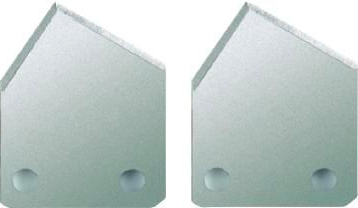

Cutter blades
Part no.	WXB004
Pack	2 pcs

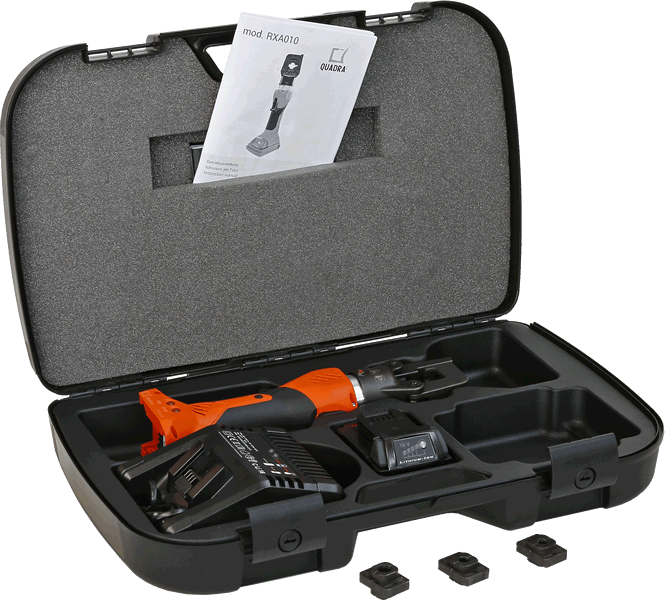

QUADRA Electric Plier

QUADRA electric plier bundle
Part no.	RXA011
Pack	1 pcs
Battery hydraulic crimping machine 45 kN Battery Li-Ion 18V 1.5Ah Battery charger USB cable and Software (CD) Set of dies DN2, DN4 and DN6 Case Dimensions of the case: 450 x 360 x 140 mm Total weight: 5,3 Kg

QUADRA electric plier full
Part no.	RXA012
Pack	2 pcs
Battery hydraulic crimping machine 45 kN Battery Li-Ion 18V 1.5Ah Battery charger USB cable and Software (CD) Set of dies DN2, DN4 and DN6 Case Spare Li-Ion 18V 1.5Ah battery DC bench power supply Dimensions of the case: 450 x 360 x 140 mm Total weight: 6,5 Kg



Valve Opener, Gasket and fitting plugs

Removable valve Opener
Part no.	WTD2Z1
Pack	50 pcs blister

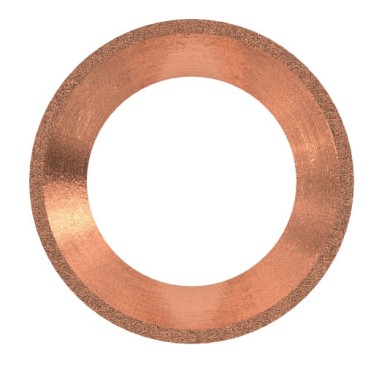

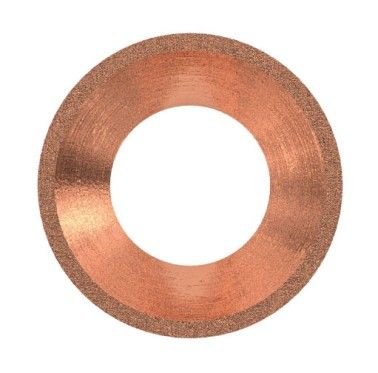

Copper Gasket 1/4”
Part no.	WRP502
Pack	50 pcs blister

Copper Gasket 3/8”
Part no.	WRP504
Pack	50 pcs blister

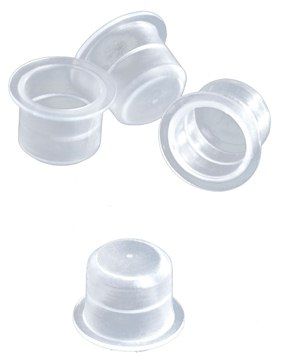

QUADRA 1/4 fitting plugs
Part no.	WRW912
Pack	50 pcs blister

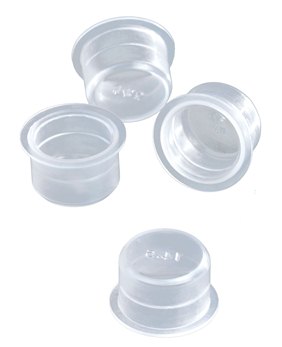

QUADRA 3/8 fitting plugs
Part no.	WRW914
Pack	50 pcs blister

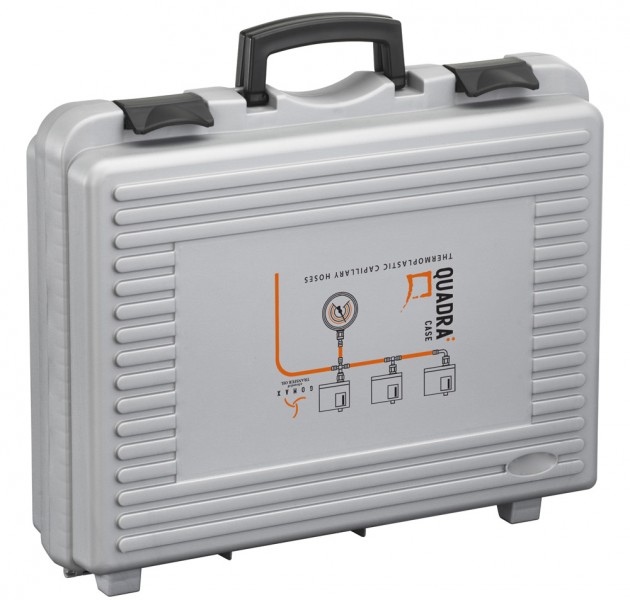

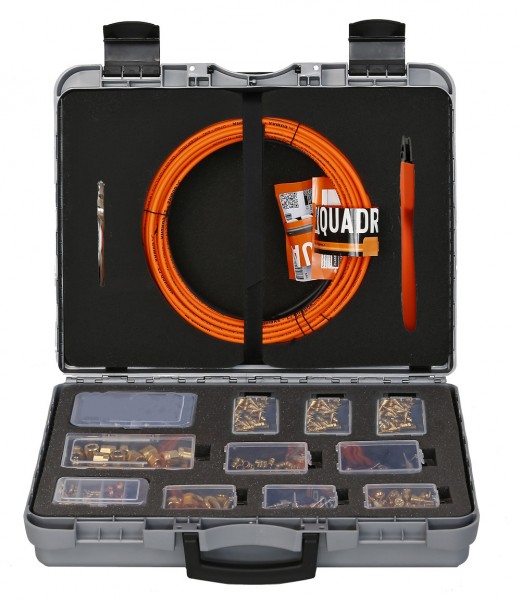

QUADRA Case

Empty
Part no.	MR293
Pack	1 pcs

Complete
Part no.	W00005
Pack	1 pcs
10 m. ref. 0780K 10 m. ref. 0780BK 1 ref. RXA007 1 ref. WXA004 1 ref. WXB004 20 ref. WBA02C 20 ref. WBB02C 10 ref. WCA02C 10 ref. WPB0C1 10 ref. WPB0C2 50 ref.WRP502 10 ref. WDN22C 50 ref. WTD2Z1 4 ref. WPA2C1 2 ref. WZE2C1 5 ref. XPB2C3



Free stand display rack

QUADRA Display
Part no.	W00006
Part no.	W00007
Part no.	W00008
Pack	1 pcs
QUADRA floor display unit A useful Floor Display unit holding an assortment of QUADRA products and accessories. A simple way to promote and support your business in your retail network. Dimensions in cm: width 65 depth 46 height 159 height with crowner 199
40 pcs KBA02C 20 pcs KBA02C 40 pcs KBB02C 20 pcs KBB02C 40 pcs KCA02C 20 pcs KCA02C 40 pcs KPB0C1 20 pcs KPB0C1 40 pcs KPB0C2 20 pcs KPB0C2 50 pcs WZE2C1 40 pcs KDN22C 20 pcs KDN22C 20 pcs KPD2C1 40 pcs KBA02M 20 pcs KBA02M 30 pcs KCA02M 20 pcs KCA02M 20 pcs KBA04M 20 pcs KCA04M 20 pcs KPB0M1 20 pcs KDN22M 20 pcs KPB2M2 30 pcs KBA02N 20 pcs KBA04N 30 pcs KCA02N 20 pcs KCA04N 4 pcs WXB004 2 pcs WXA004 2 pcs RXA007 100 pcs WRP502 100 pcs WTD2Z1 60 m 0780BK 20 m 0780BK 60 m 0780K 20 m 0780K 20 m 0789BK 20 m 0789K 20 m 0786BK 20 m 0786K



• 1/4” Straight female + 1/4” Straight female

  Part no.	CKAXXX CRUUS UL approved
  Part no.	CKBXXX CRUUS UL approved
  Part no.	CAAXXX
  Part no.	CCBXXX
  Pack	Assembled hose in bundles of 50 pieces

• 1/4” Straight female + 1/4” Straight female + Valve opener

  Part no.	CCJXXX
  Part no.	CEQXXX
  Pack	Assembled hose in bundles of 50 pieces

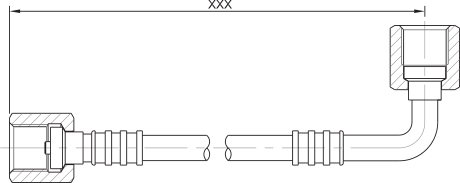

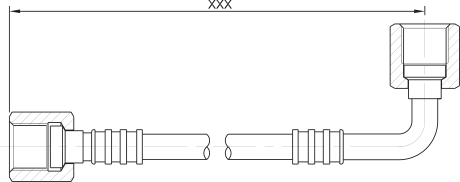

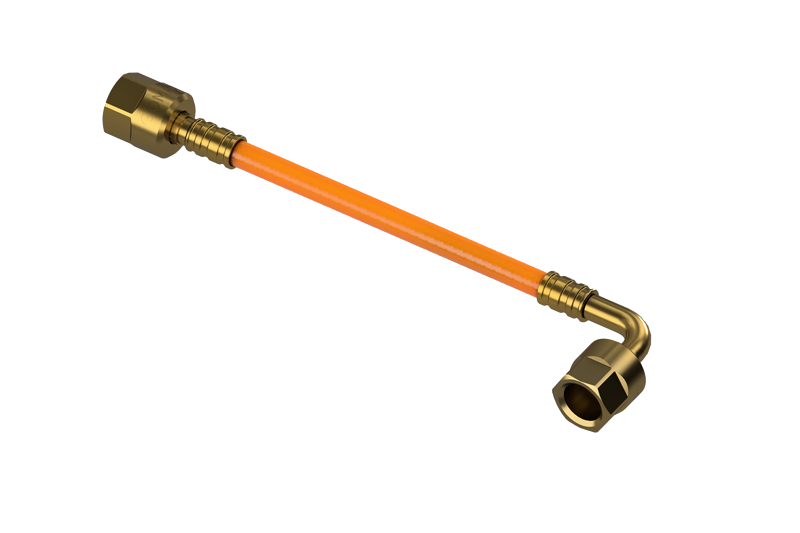

• 1/4” Straight female + 1/4” Elbow female

  Part no.	CKCXXX CRUUS UL approved
  Part no.	CKDXXX CRUUS UL approved
  Part no.	CACXXX
  Part no.	CCDXXX
  Pack	Assembled hose in bundles of 50 pieces

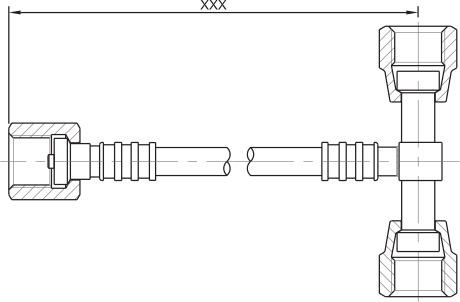

• 1/4” Straight female + “T” with 2 female 1/4” at 180°

  Part no.	CETXXX
  Part no.	CEUXXX
  Pack	Assembled hose in bundles of 50 pieces

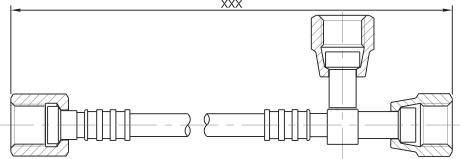

• 1/4” Straight female + “T” with 2 female 1/4” at 90°

  Part no.	CEVXXX
  Part no.	CEWXXX
  Pack	Assembled hose in bundles of 50 pieces

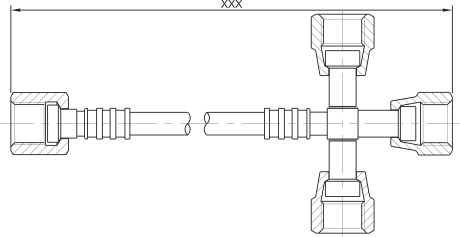

• 1/4” Straight female + Cross with 3 females

  Part no.	CEXXXX
  Part no.	CEYXXX
  Pack	Assembled hose in bundles of 50 pieces

• 1/4” Straight female + 1/4” Male

  Part no.	CERXXX
  Part no.	CESXXX
  Pack	Assembled hose in bundles of 50 pieces

• 1/4” Straight female + copper brazing tube

  Part no.	CEZXXX
  Part no.	CFAXXX
  Pack	Assembled hose in bundles of 50 pieces

• 1/4” Straight female + 1/4” Straight female (all with valve opener)

  Part no.	CABXXX
  Part no.	CCCXXX
  Pack	Assembled hose in bundles of 50 pieces

• 1/4” Straight female (with valve opener) + 1/4” Elbow female

  Part no.	CADXXX
  Part no.	CCEXXX
  Pack	Assembled hose in bundles of 50 pieces

• 1/4” Straight female with valve opener + “T” with 2 females 1/4” at 180°

  Part no.	CFDXXX
  Part no.	CFEXXX
  Pack	Assembled hose in bundles of 50 pieces

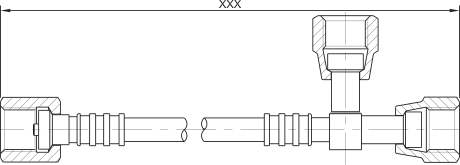

• 1/4” Straight female +with valve opener + “T” with 2 females 1/4” at 90°

  Part no.	CFFXXX
  Part no.	CFGXXX
  Pack	Assembled hose in bundles of 50 pieces

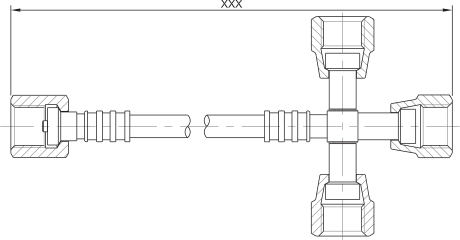

• 1/4” Straight female with valve opener + cross with 3 1/4” Female

  Part no.	CFHXXX
  Part no.	CFIXXX
  Pack	Assembled hose in bundles of 50 pieces

• 1/4” Straight female with valve opener + male 1/4

  Part no.	CFBXXX
  Part no.	CFCXXX
  Pack	Assembled hose in bundles of 50 pieces

• 1/4” Straight female with valve opener + copper brazing tube

  Part no.	CFJXXX
  Part no.	CFKXXX
  Pack	Assembled hose in bundles of 50 pieces

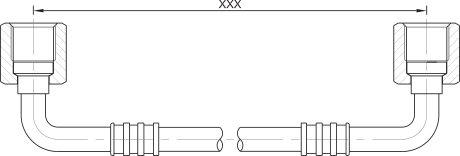

• 1/4” Elbow female + 1/4” Elbow female

  Part no.	CKEXXX CRUUS UL approved
  Part no.	CKFXXX CRUUS UL approved
  Part no.	CAEXXX
  Part no.	CCFXXX
  Pack	Assembled hose in bundles of 50 pieces

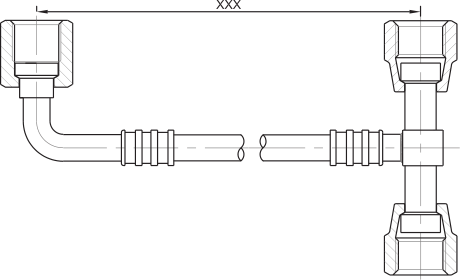

• 1/4” Elbow female 90° + “T” with 2 females 1/4” at 180°

  Part no.	CFPXXX
  Part no.	CFQXXX
  Pack	Assembled hose in bundles of 50 pieces

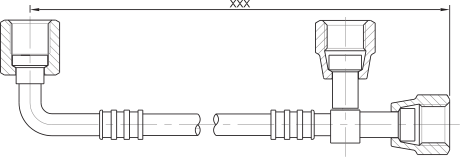

• 1/4” Elbow female 90° + “T” with 2 females 1/4” at 90°

  Part no.	CFRXXX
  Part no.	CFSXXX
  Pack	Assembled hose in bundles of 50 pieces

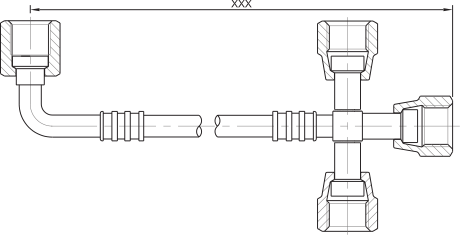

• 1/4” Elbow Female 90° + cross with 3 1/4” females

  Part no.	CFTXXX
  Part no.	CFUXXX
  Pack	Assembled hose in bundles of 50 pieces

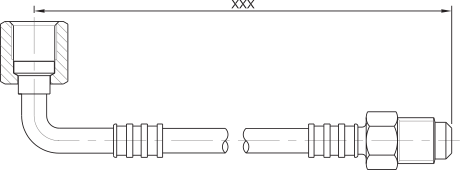

• Elbow 1/4” female 90° + 1/4” Male

  Part no.	CFNXXX
  Part no.	CF0XXX
  Pack	Assembled hose in bundles of 50 pieces

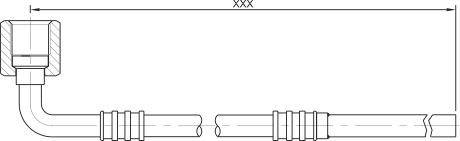

• 1/4” Elbow female 90° + copper brazing tube

  Part no.	CFVXXX
  Part no.	CFWXXX
  Pack	Assembled hose in bundles of 50 pieces

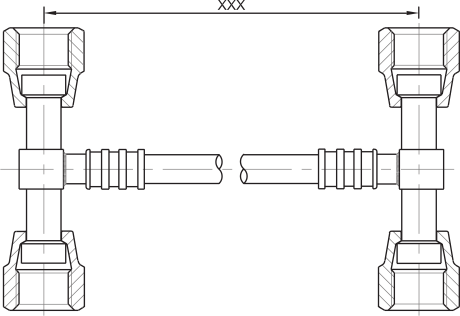

• 1/4” “T” with 2 femals at 180° + 1/4” “T” with 2 femals at 180°

  Part no.	CGHXXX
  Part no.	CGIXXX
  Pack	Assembled hose in bundles of 50 pieces

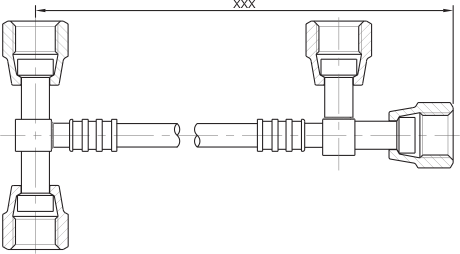

• 1/4” “T” with 2 femals at 180° + 1/4” with 2 femals at 90°

  Part no.	CGJXXX
  Part no.	CGKXXX
  Pack	Assembled hose in bundles of 50 pieces

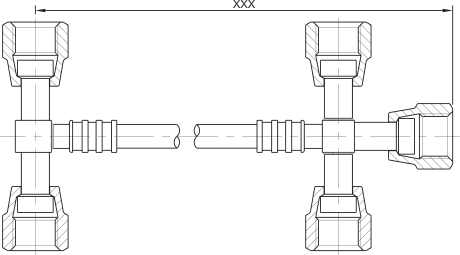

• 1/4” “T” with 2 females at 180° + 1/4” 3 Females cross

  Part no.	CGLXXX
  Part no.	CGMXXX
  Pack	Assembled hose in bundles of 50 pieces

• 1/4” “T” females at 180° + “T” 1/4” with 2 females at 180°

  Part no.	CFZXXX
  Part no.	CGAXXX
  Pack	Assembled hose in bundles of 50 pieces

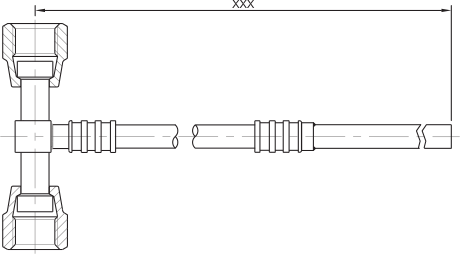

• 1/4” “T” females at 180° + copper brazing tube

  Part no.	CGNXXX
  Part no.	CGOXXX
  Pack	Assembled hose in bundles of 50 pieces

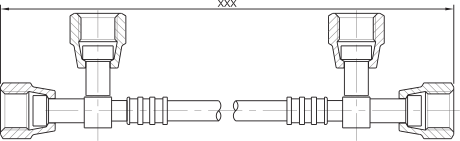

• 1/4” “T” females at 90° + 1/4” “T” females at 90°

  Part no.	CGPXXX
  Part no.	CGQXXX
  Pack	Assembled hose in bundles of 50 pieces

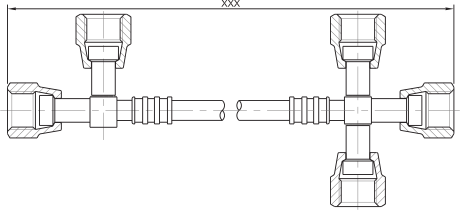

• 1/4” “T” females at 90° + Cross with 3 1/4”females

  Part no.	CGRXXX
  Part no.	CGSXXX
  Pack	Assembled hose in bundles of 50 pieces

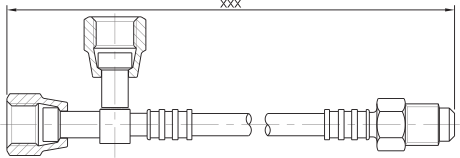

• 1/4” Male + 1/4” “T” females at 90°

  Part no.	CGBXXX
  Part no.	CGCXXX
  Pack	Assembled hose in bundles of 50 pieces

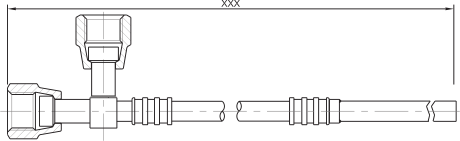

• 1/4” “T” females at 90°+ Copper brazing tube

  Part no.	CGTXXX
  Part no.	CGUXXX
  Pack	Assembled hose in bundles of 50 pieces

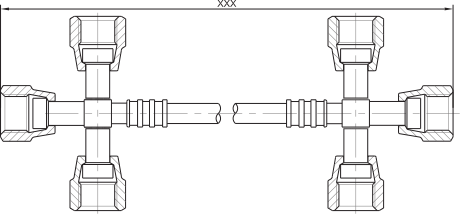

• Cross with 3 1/4”females + Cross with 3 1/4”females

  Part no.	CGVXXX
  Part no.	CGWXXX
  Pack	Assembled hose in bundles of 50 pieces

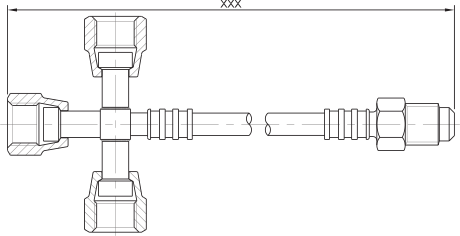

• Cross with 3 1/4”females + 1/4” Male

  Part no.	CGDXXX
  Part no.	CGEXXX
  Pack	Assembled hose in bundles of 50 pieces

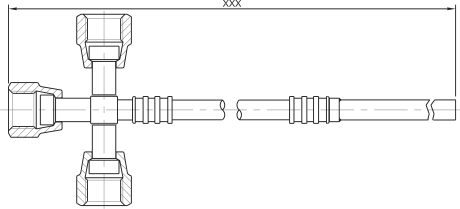

• Cross with 3 1/4”females + copper brazing tube

  Part no.	CGXXXX
  Part no.	CGYXXX
  Pack	Assembled hose in bundles of 50 pieces

• 1/4” Male + 1/4” Male

  Part no.	CFXXXX
  Part no.	CFYXXX
  Pack	Assembled hose in bundles of 50 pieces

• 1/4” Male + Copper Brazing Tube

  Part no.	CGFXXX
  Part no.	CGGXXX
  Pack	Assembled hose in bundles of 50 pieces

• Copper Brazing Tube + Copper Brazing Tube

  Part no.	CGZXXX
  Part no.	CHAXXX
  Pack	Assembled hose in bundles of 50 pieces

Assembling instructions for crimping fittings for QUADRA DN2 capillary hose

1

Cut the QUADRA capillary hose to the required lenght using the special WXA004 cutter

2

Slip the nut over the hose (depending on ftting type). Ensure that the threaded side is pointing towards the end of the hose that needs assembling.

3

When pushing the ferrule over the hose end, ensure its correct positioning, in line with the hose end. Push the insert into the hose end you want to assemble.

4

Pay attention not to move the components already fItted and slide the ferrule over the hose towards the insert positioning it in line with the insert.

5

Crimp the ferrule with our hand pliers type RXA007, up to the limit stop of the pliers: once the optimal deformation has been achieved the pliers will open automatically.

5a

Crimp the ferrule using our pliers cod.RXA005: open the punches using the special lever, then put the ferrule properly between the pinches. The deformation is achieved when the pliers release and the lever idles.

6

The assembling is fnished and the eventual nut can easily slide over the ferrule: check the correct positioning of thecomponents and make sure the entire surface of theferrule has been swaged.

Note!
Once the hose assembly is connected to the machine, do not move or rotate it, otherwise you risk loosening the nut or damaging the fitting by compromising its tightness. In case you have to modify the orientation of the coupling, unscrew the nut, position the hose assembly, then tighten the nut again respecting the torque value of 16 ÷ 18 N·m max 20 N·m.
